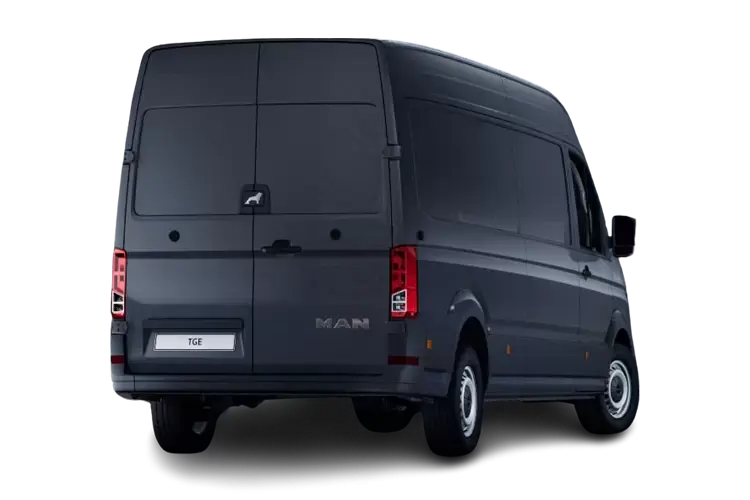

MAN TGE Large Van 3 STANDARD 180 Lion XS Van

Insurance Group 1:

N

Insurance Group 2:

N

Chassis Engine Number:

N

Vin/Frame No.:

N

Coin Series:

N

Coin Description:

N

Standard manufacturers warranty - Years:

3

Standard manufacturers warranty - Mileage:

999999

Front Brakes:

DISCS

Rear Brakes:

DISCS

Steering:

PAS

NCAP Pedestrian - Discontinued February 09:

0

NCAP Front/Side Impact - Discontinued February 09:

0

Any aspect of the vehicles safety cause concern?:

Coin Wheelbase Description Code:

N

Coin Wheelbase Name Code:

N

Coin Gross Vehicle Weight Code:

N

Coin Power Output Code:

N

Special Edition:

Special Order:

Based On ID:

0

Running Cost League Headings:

LARGE

This vehicle is classed as a car for VED purposes:

Ghost model for valuation purposes:

NCAP Adult Occupant Protection %:

0

NCAP Child Occupant Protection %:

0

NCAP Overall Rating - Effective February 09:

0

NCAP Pedestrian Protection %:

0

NCAP Safety Assist %:

0

Badge Engine CC:

2

Badge Power:

180

Vehicle Homologation Class:

N1

Generation Mark:

2

NCAP Overall Rating - LCV:

N

Relative Height:

H1

Relative Length:

L1

Minimum Kerbweight:

2283

Gross Vehicle Weight:

3500

Fuel Tank Capacity (Litres):

75

Max. Towing Weight - Braked:

3000

Max. Towing Weight - Unbraked:

750

Payload:

1217

Load Space Volume:

9.9

Boot Capacity Saloons:

Luggage Capacity - 2nd Row Seats Up:

Luggage Capacity (Seats Down):

Luggage Capacity - 3rd Row Seats Up:

Luggage Capacity - 3rd Row Seats Down:

Luggage Capacity - 2nd Row Seats Removed:

Luggage Capacity - 3rd Row Seats Removed:

No. of Seats:

3

Max. Roof Load:

300

Luggage Capacity (Seats Up):

0

Plated Front Axle:

1800

Plated 2nd Axle:

2100

Gross Train Weight:

6000

Length:

5986

Width (excluding mirrors):

2040

Wheelbase:

3640

Width (including mirrors):

2427

Height:

2355

Height (including roof rails):

0

Load Length:

3450

Load Width:

1832

Load Height:

1726

Turning Circle - Kerb to Kerb:

13.9

Rear Overhang:

1346

Side Load Door Width:

1311

Side Load Door Height:

1587

Lower Rear Door Width:

1552

Rear Door Height:

1605

Load Deck Height:

570

Load Space Width Between Wheel Arches:

1380

Turning Circle - Wall to Wall:

14.2

Bore:

81

Stroke:

95.5

CC:

1968

Cylinders:

4

Cylinder Layout:

IN-LINE

Number of Valves:

16

Valve gear:

DOHC

Fuel Type:

DIESEL

Catalytic Convertor:

1

Engine Layout:

FRONT TRANSVERSE

Compression Ratio:

15.5:1

Gears:

6 SPEED

Engine Make:

N

Fuel Delivery:

COMMON RAIL

Automatic Transmission:

Manual Transmission:

1

BHP:

177

PS:

1

Engine Power KW:

130

Engine Power RPM:

3600

Engine Torque LBS.FT:

302

Engine Torque NM:

410

Engine Torque RPM:

1500

Engine Torque MKG:

41.8

Tyre Size Front:

205/75 R16

Tyre Size Rear:

205/75 R16

Tyre Size Spare:

FULL SIZE

Wheel Type:

16" STEEL

Wheel Style:

N

Tyre Make:

N

Plated 3rd Axle:

0

Plated 4th Axle:

0

Alloys?:

Space Saver?:

Automatic Clutch:

Standard Euro Emissions:

EURO 6

Noise Level dB(A):

CO:

NOx:

HC+NOx:

Particles:

HC:

WLTP - CO2 (g/km) - Comb:

241

WLTP - FC (l/100km) - Comb:

9.2

WLTP - FC (l/100km) - Extra High:

10.5

WLTP - FC (l/100km) - High:

7.8

WLTP - FC (l/100km) - Low:

10.2

WLTP - FC (l/100km) - Medium:

8.3

WLTP - MPG - Comb:

30.7

WLTP - MPG - Extra High:

26.9

WLTP - MPG - High:

36.2

WLTP - MPG - Low:

27.7

WLTP - MPG - Medium:

34

Emissions Test Cycle:

WLTP

RDE Certification Level:

RDE 2

Driver and passenger airbag:

3 point inertia reel belt on all seats:

Height adjustable front seatbelts:

Crosswind assist:

Electric driver seatbelt pretensioners:

Engine immobiliser:

Remote central locking with 2 remote keys:

Keyless go:

Preparation for alcohol ignition interlock:

Rear wing doors without windows:

270 degree rear door hinges:

Nearside sliding door:

Manual side sliding door passenger side:

Rubber floor covering:

Jack and tool kit:

Reach and rake adjustable steering wheel:

Terminal block:

Grab handles on rear entry pillars:

ABS and EBA:

Hill start assist:

ESC:

Electronic parking brake:

Start and stop system with regenerative braking:

Alternator - 180A:

12v socket in dash panel:

Operating voltage 12 V:

Tyre pressure monitor:

Dynamic road sign display:

3 Button module for information and emergency calls:

Digital instrumentation:

2 load lashing rings on B pillar:

Lashing rings for load restraint system:

Low rolling resistance tyres:

Summer tyres:

Full size steel spare wheel:

Height adjustable driver seat:

75 litre fuel tank:

30L AdBlue tank:

Driver alert system:

Wireless smartphone charging:

Event data recorders:

Electromechanical steering:

Full height steel bulkhead without window:

Smartphone integration:

AM/FM tuner with MP3 compatibility:

USB-C socket:

DAB plus for media van:

Interior LED lighting system:

Seatbelt warning light for driver and passenger:
